Coffee_invocation
Alex Butler / June 2023 (6616 Words, 37 Minutes)
coffee_invocation was one of the reversing challenges for the HTB x UNI 2020 CTF, with its twist being that rather than just a standard C or C++ program, it utilises the Java Native Interface to execute most of the program logic As far as I can tell no team solved this during the event, likely due to perceived time investment for learning about JNI, but it is surprisingly simple once you can wrap your head around some of the obstacles.
There were no debugging symbols present on this binary so any function names, apart from the JNI provided ones, have been provided by myself from deducing what they do.
main

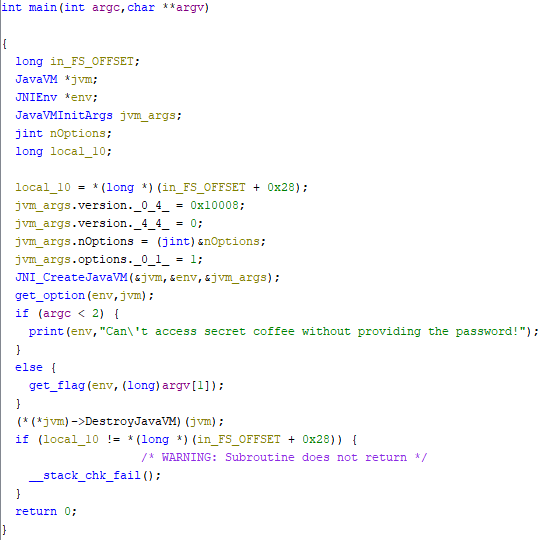

Decompiling main immediately gives away the JNI twist for this challenge, the first function call is to JNI_CreateJavaVM, with some arguments that consist of some unknown numbers and strings.
I imported this JNI header definition into Ghidra to define the JNI specific types and allow me to view which fields and functions were being accessed, from here we can make a little more sense of things.
After this, the arguments to JNI_CreateJavaVM make a bit more sense. The function arguments are a pointer to a JavaVM struct, a pointer to a JNIEnv struct, and a JavaVMInitArgs struct -
The JVMInitArgs don’t tell us much, the struct only takes a version, nOptions and options from which we can determine the Java version is 1.8.
The jvm and env pointers are then populated with the respective structs, these are the structs with which the program will interface with the Java process, the JavaVM struct being a function table and an interface to the running VM, providing the ability to attach threads or destroy it.
The JNIEnv struct is far more useful in this challenge, providing a function table giving access to call methods, edit fields, and create objects.
get_option

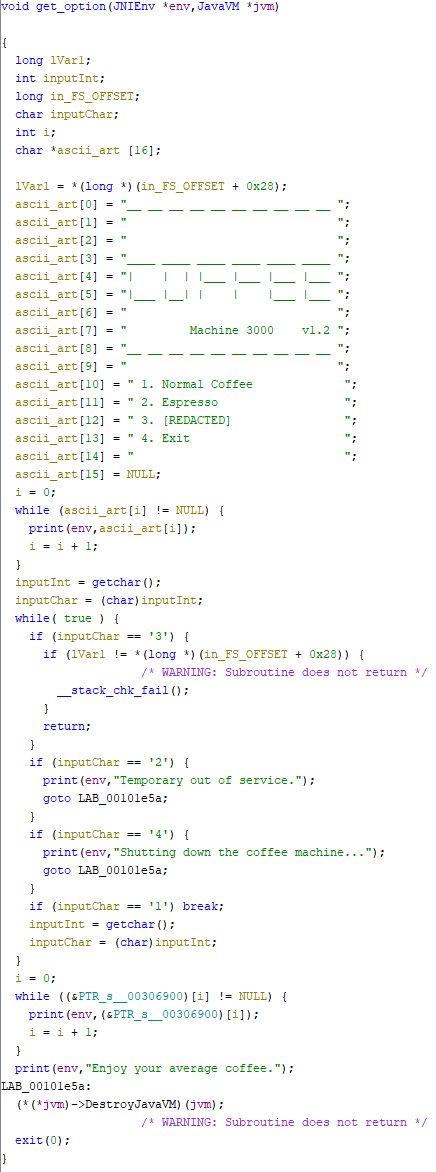

The next call is to a function I have renamed to get_option, it is a fairly simple function which prints some ASCII art and asks for a selection from a menu, on picking anything but [REDACTED] the Java VM is destroyed and the program terminates. On picking [REDACTED] the function returns back to main
Next, main checks argc is greater than 2 (One argument supplied via the command line since argv[0] is the command with which the program was invoked). If there is no argument present a message is printed via the renamed print function

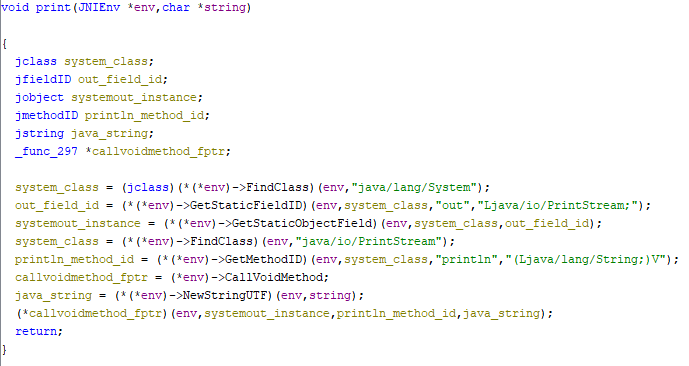

Printing to standard out is usually pretty simple in C, but the challenge authors decided to rewrite this functionality with JNI. Using the JNI definitions and some basic Java knowledge, it’s pretty clear that this function just finds the PrintStream of System.out, then calls println(String) on it, providing the char* passed in the original C function.
This print (and later print_str which seems to be identical) function is used for all further printing within the program.
get_flag

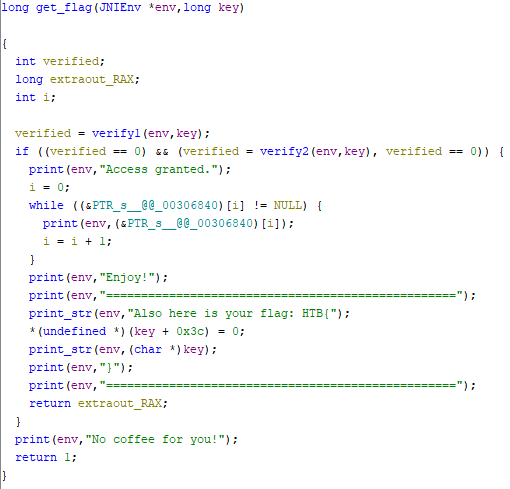

Focussing back on main, if the argc < 2 check does not pass, the next call is to a function I renamed to get_flag, passing the JNIEnv and argv[1] as arguments.
This function calls verify1 and verify2, checks if they both return 0 and if so, prints out some ASCII art and gives us the flag.
verify1

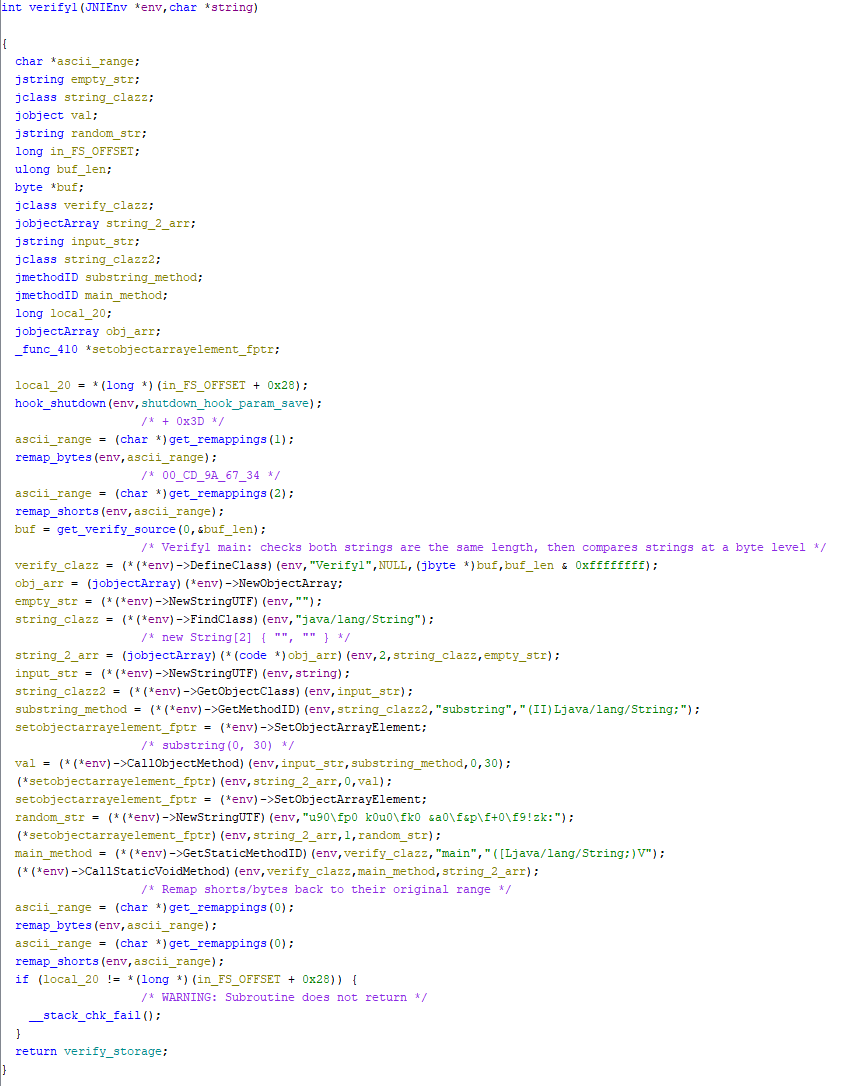

Here begins the most complex parts of this challenge, verify1 first calls a function I have renamed hook_shutdown, which essentially overrides Java’s static native void halt0(int status) function and replaces it with a function shutdown_hook_param_save, this either saves the status code in a global variable, or if it is already set, compares the status code with the currently stored value and replaces it if it is less than. This will be used later for some program logic.
get_remappings / Remapping Type caches

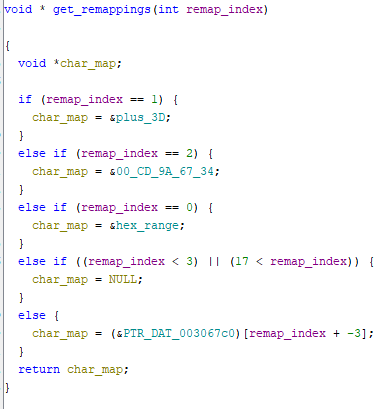

get_remappings is a function which takes an integer and depending on that integer, returns a pointer to a different byte array. These arrays all contain values from hex 0x00 to hex 0xFF, but have some variation on their order. For example plus_3D begins at 0x3D and increments at each index, wrapping around to 0x00 after 0xFF.

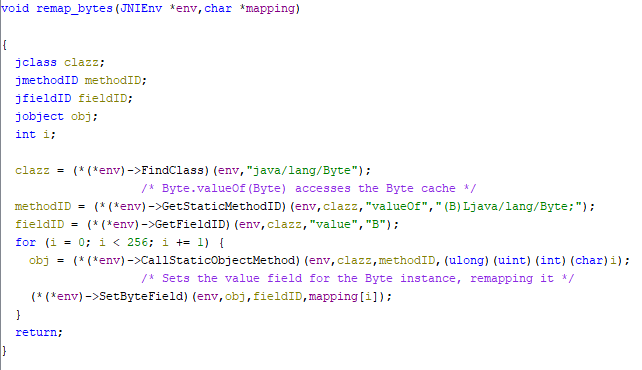

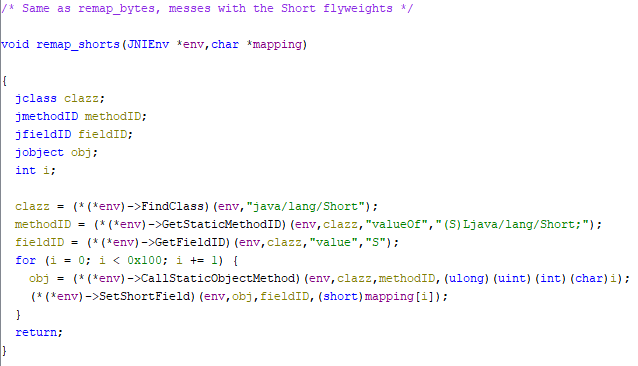

In a few places this challenge will play around with the caches of some of Java’s boxed types such as Byte, Short, Character and Boolean. These caches hold all of the 256 possible values for Byte and a variable number for Character or Short. By overwriting these, any operations performed within the upcoming Java code will use these new mappings, so we must be aware of this going forth.
For verify1, Byte and Short are remapped to new byte orders, plus_3D (Hex 00 to FF but offset by +3D) and 00_CD_9A_67_34 (this is the pattern of 5 bytes which are all incremented to form the pattern) respectively.
Two compiled Java class files are contained within this binary, get_verify_source selects which one to access and then provides a pointer to it as well as its length in bytes.
verify1 accesses the first and makes a JNI call to DefineClass to load the class into the JVM. Then, still using JNI, creates an empty String, a length 2 String[] array of these empty Strings. Our input string which is taken from argv[1] is substringed to length 30, placed in index 0 of the 2-element String[] array, and is then accompanied by a seemingly random String of characters placed in slot 1.
The verify1 class now has its main method called via CallStaticVoidMethod with the 2-element String[] as its String[] args argument.

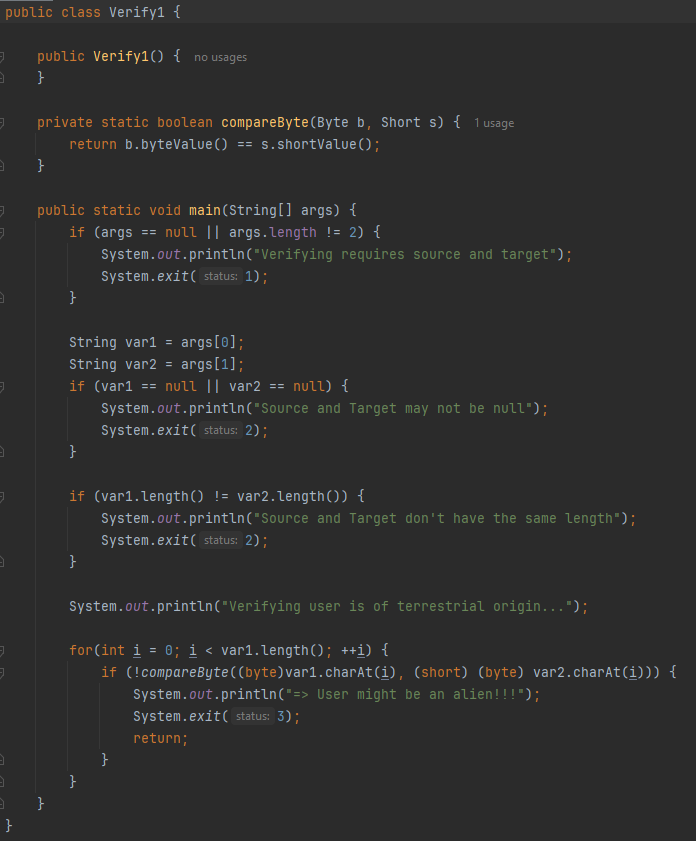

Extracting the verify1 source and decompiling it (with some re-arranging of code for readability) we find a fairly simple functionality. Both Strings from the 2-element array are checked to be present, non-null and of the same length. Providing this is true, each character in the String is compared to its corresponding character in the other String and if all match, the main method can exit with status 0, else it will return with a non-zero value depending on which condition was not met.
However, remembering that both the Byte and Short caches have been tampered with, we must do some scripting to match values in both arrays to their remappings, and reverse this to find how we can match our input to the remapped second String.
remap1 = "3d 3e 3f 40 41 42 43 44 45 46 47 48 49 4a 4b 4c 4d 4e 4f 50 51 52 53 54 55 56 57 58 59 5a 5b 5c 5d 5e 5f 60 61 62 63 64 65 66 67 68 69 6a 6b 6c 6d 6e 6f 70 71 72 73 74 75 76 77 78 79 7a 7b 7c 7d 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 30 31 32 33 34 35 36 37 38 39 3a 3b 3c"
remap2 = "00 cd 9a 67 34 01 ce 9b 68 35 02 cf 9c 69 36 03 d0 9d 6a 37 04 d1 9e 6b 38 05 d2 9f 6c 39 06 d3 a0 6d 3a 07 d4 a1 6e 3b 08 d5 a2 6f 3c 09 d6 a3 70 3d 0a d7 a4 71 3e 0b d8 a5 72 3f 0c d9 a6 73 40 0d da a7 74 41 0e db a8 75 42 0f dc a9 76 43 10 dd aa 77 44 11 de ab 78 45 12 df ac 79 46 13 e0 ad 7a 47 14 e1 ae 7b 48 15 e2 af 7c 49 16 e3 b0 7d 4a 17 e4 b1 7e 4b 18 e5 b2 7f 4c 19 e6 b3 80 4d 1a e7 b4 81 4e 1b e8 b5 82 4f 1c e9 b6 83 50 1d ea b7 84 51 1e eb b8 85 52 1f ec b9 86 53 20 ed ba 87 54 21 ee bb 88 55 22 ef bc 89 56 23 f0 bd 8a 57 24 f1 be 8b 58 25 f2 bf 8c 59 26 f3 c0 8d 5a 27 f4 c1 8e 5b 28 f5 c2 8f 5c 29 f6 c3 90 5d 2a f7 c4 91 5e 2b f8 c5 92 5f 2c f9 c6 93 60 2d fa c7 94 61 2e fb c8 95 62 2f fc c9 96 63 30 fd ca 97 64 31 fe cb 98 65 32 ff cc 99 66 33"
remap_bytes = [int(i, 16) for i in remap1.split(' ')]
remap_shorts = [int(i, 16) for i in remap2.split(' ')]
known_string = "u90\fp0 k0u0\fk0 &a0\f&p\f+0\f9!zk:"
input_str = ""
for char in known_string:
input_str = input_str + chr(remap_bytes.index(remap_shorts[ord(char)]))
print(input_str)
And this gives us:
th3_s3cr3t3_r3c1p3_1s_23_h0ur5
Running this through verify1 as a standalone Java program exits successfully with a zero exit code, verifying that this is the correct string!
verify2

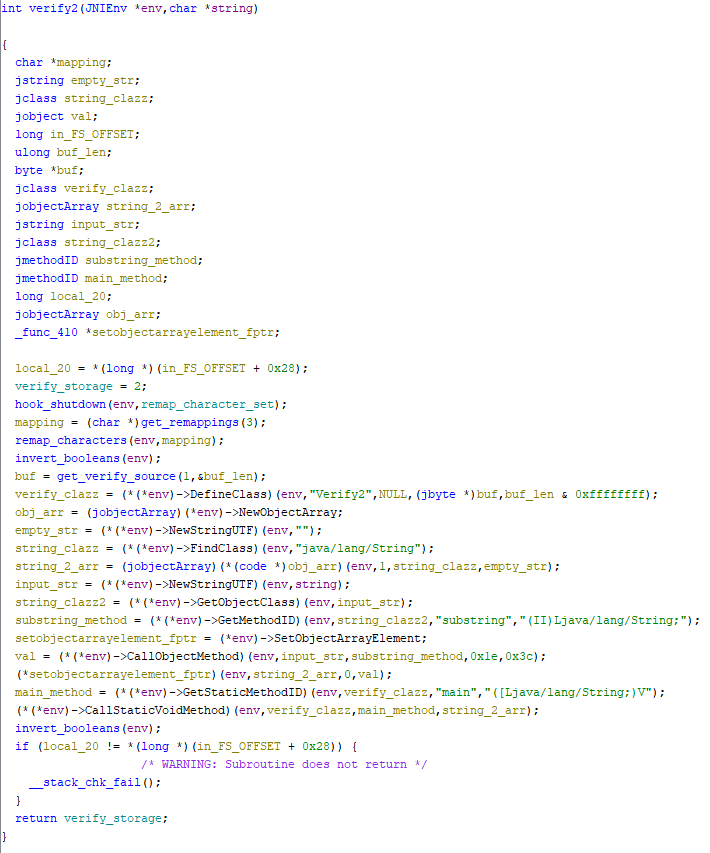

verify2 follows much of the same story as verify1, another Java class file is embedded in the binary, and caches are remapped. However, this one will be slightly more tricky.

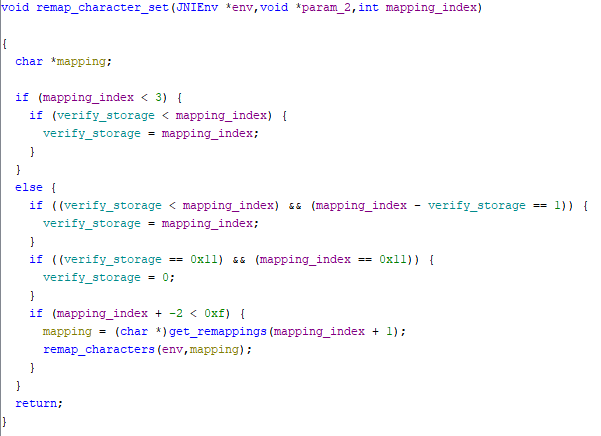

The first difference we see is that the hook_shutdown function is now called with a different replacement function. I have named this remap_character_set since it appears to remap the char array to one of 15 different remappings, depending on the exit code received. There also appears to be a global variable modified each time which eventually is returned as the result of verify2.

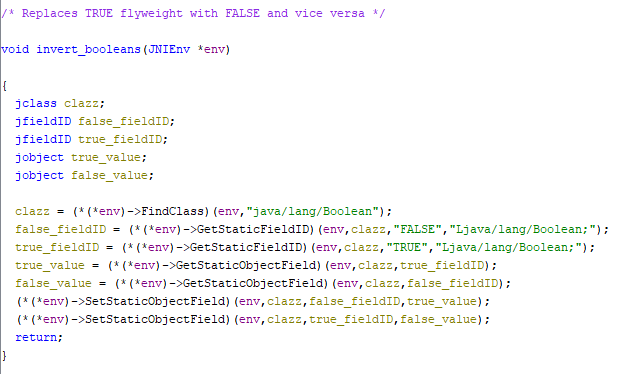

There is another new function which I have named invert_booleans, the purpose of which is to swap the true and false definitions within the Boolean class’s fields. This means we will need to take care when reading the Java source for the verify2 class, as any booleans boxed into a Boolean will be inverted.
This time the second 30-char half of our input string from argv is passed to the Java main method.

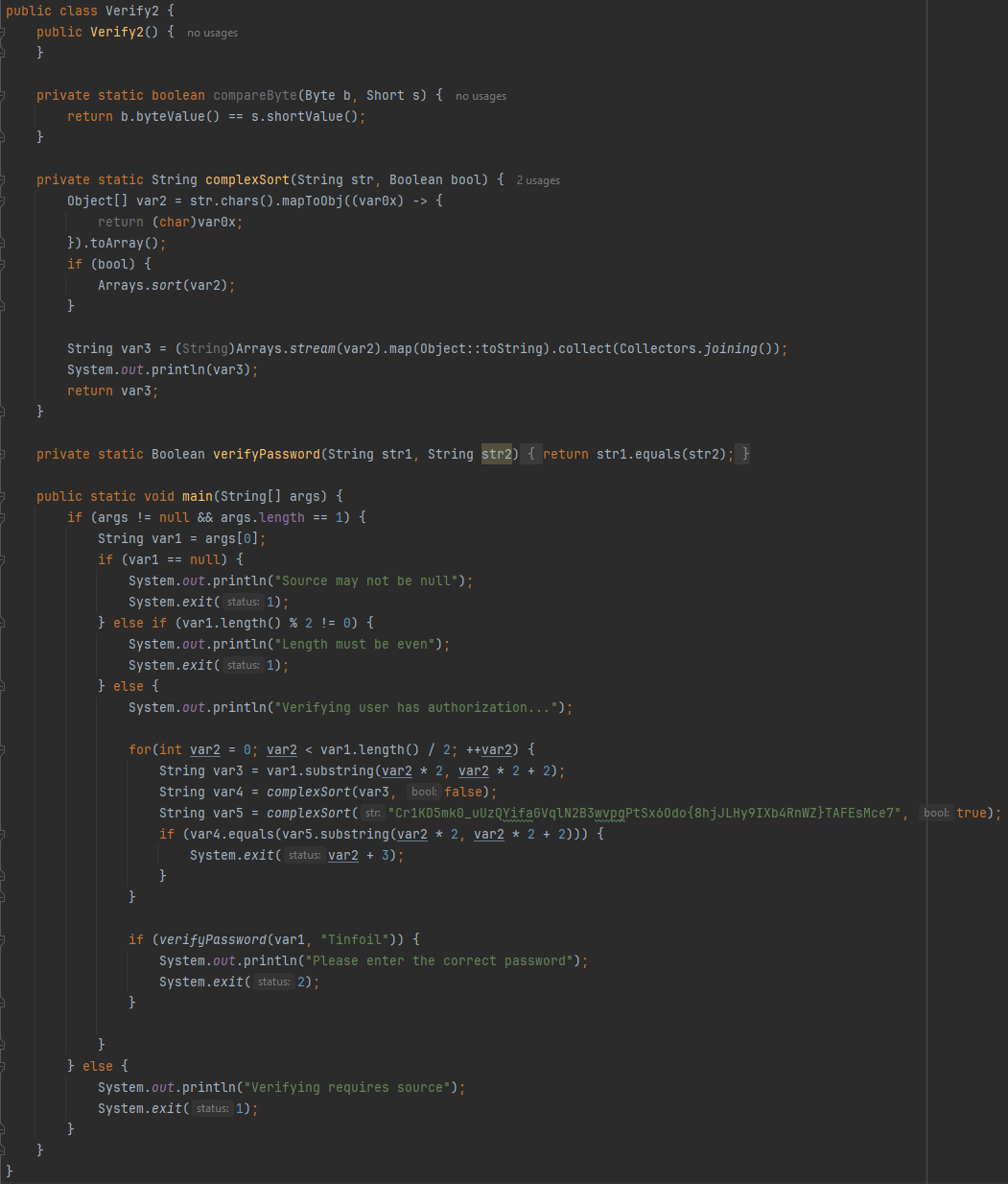

The first part of the main method is much of the same checks, the args array must be non-null and of length 1, and the length of our input string must be an even number.
From there it iterates over the input string, splitting it into 2 character chunks, then calling complexSort(chars, true). complexSort boxes the input String into an array of Chars, which remaps them onto the mappings set earlier, then if the second boolean argument is true (or in our inverted case, false) then the Chars are sorted by the standard library Arrays.sort function, combined back into a String and returned.
complexSort is called again, this time with a hard-coded string Cr1KD5mk0_uUzQYifaGVqlN2B3wvpgPtSx6Odo{8hjJLHy9IXb4RnWZ}TAFEsMce7 and false. This means the string will be remapped and will be sorted into its natural ordering.
Both 2-character chunks are then compared to each other. If they match, System.exit(i+3) is called, this is intercepted by the shutdown hook set earlier and switches the char remapping to the next mapping set.
This requires another script to try to reverse -
mappings = [
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 55 43 78 7b 4b 47 69 56 67 41 3a 3b 3c 3d 3e 3f 40 76 52 34 38 79 61 35 54 6f 53 6d 63 4f 49 4e 5f 32 7d 7a 71 50 75 33 42 45 66 5b 5c 5d 5e 30 60 57 48 58 6c 51 65 39 4d 5a 4a 62 64 6e 73 72 74 6b 77 31 44 37 68 36 59 46 70 4c 7c 6a 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 6b 41 63 31 51 43 72 76 4d 48 3a 3b 3c 3d 3e 3f 40 68 45 56 73 4f 57 70 37 46 55 44 74 42 30 6e 61 5f 62 36 58 6c 65 52 53 4c 34 5b 5c 5d 5e 71 60 4b 54 77 47 49 59 6f 7b 38 4a 67 79 78 6a 7d 7a 35 33 6d 32 64 69 39 75 4e 5a 66 7c 50 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 6d 35 56 38 34 59 49 71 54 77 3a 3b 3c 3d 3e 3f 40 41 74 58 33 63 57 47 61 4e 6b 76 67 4c 39 44 4a 7b 5f 70 64 37 65 32 30 52 62 5b 5c 5d 5e 6a 60 36 68 69 53 51 73 45 6f 4f 6c 7d 31 48 43 72 66 42 75 50 46 4b 7a 5a 79 55 6e 78 7c 4d 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 68 64 59 52 49 45 51 31 74 34 3a 3b 3c 3d 3e 3f 40 71 47 55 4d 66 35 61 65 6d 43 50 7d 63 67 41 6e 6f 78 58 6a 46 4c 54 77 30 39 5b 5c 5d 5e 62 60 7b 32 57 69 6b 72 36 37 38 70 4e 76 48 4a 5a 56 75 42 44 4f 79 4b 73 53 33 5f 7a 7c 6c 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 71 33 7b 42 31 61 55 7a 52 6a 3a 3b 3c 3d 3e 3f 40 64 5a 53 6b 58 34 44 79 78 69 4d 6f 76 4f 6c 77 74 54 63 75 68 70 30 41 7d 6d 5b 5c 5d 5e 39 60 48 36 56 32 67 37 45 62 50 51 43 4e 59 72 4a 49 66 4b 35 38 5f 57 47 46 73 6e 4c 7c 65 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 41 4f 7a 30 6a 67 5a 7b 5f 54 3a 3b 3c 3d 3e 3f 40 47 33 72 69 6b 64 32 6c 62 77 49 57 53 38 66 7d 46 4d 70 4b 4e 76 36 55 65 74 5b 5c 5d 5e 4a 60 45 59 78 31 58 42 43 51 61 39 73 79 6e 52 44 63 4c 37 34 6d 48 50 71 35 6f 68 75 7c 56 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 55 75 30 32 6e 7d 41 56 34 4c 3a 3b 3c 3d 3e 3f 40 59 68 58 37 36 71 53 39 50 48 6d 7a 5f 6c 4f 51 45 6a 77 31 65 46 38 64 70 74 5b 5c 5d 5e 43 60 4a 76 5a 4d 73 4b 79 6f 57 52 62 33 67 69 35 72 78 44 54 49 4e 61 6b 7b 66 63 47 7c 42 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 30 58 6d 45 46 6e 38 4a 4d 36 3a 3b 3c 3d 3e 3f 40 61 63 34 62 59 31 53 6c 55 54 4b 78 7b 5a 73 37 50 70 41 69 39 52 4c 5f 48 67 5b 5c 5d 5e 65 60 56 47 71 6a 32 6b 4e 33 72 42 49 74 44 6f 7d 75 77 57 35 64 7a 79 51 4f 43 68 76 7c 66 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 31 48 7b 76 70 7d 71 73 6d 6e 3a 3b 3c 3d 3e 3f 40 33 50 45 75 6b 57 56 5a 79 62 7a 4d 30 39 69 52 6f 49 67 72 6c 63 44 58 4a 53 5b 5c 5d 5e 74 60 61 65 37 47 66 51 55 6a 5f 64 34 4c 38 35 68 4e 4f 43 36 42 4b 54 59 46 78 77 41 7c 32 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 45 4c 6c 70 75 6a 52 76 6d 73 3a 3b 3c 3d 3e 3f 40 48 32 47 54 66 56 7d 50 68 5f 46 39 55 51 78 74 71 42 7a 63 35 4f 61 33 62 34 5b 5c 5d 5e 6e 60 44 57 58 64 43 37 4a 4b 67 31 53 36 30 49 77 6f 72 4d 59 7b 65 38 79 5a 41 6b 4e 7c 69 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 6c 72 39 4d 74 4e 4f 75 49 68 3a 3b 3c 3d 3e 3f 40 37 35 32 64 7b 59 61 62 48 4c 63 77 36 69 30 44 6a 54 7d 6e 73 79 70 41 71 6f 5b 5c 5d 5e 4b 60 5a 46 33 34 55 42 6b 4a 47 65 5f 67 51 6d 57 53 66 78 52 76 38 56 45 43 50 7a 31 7c 58 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 66 38 58 61 4d 59 6c 36 45 53 3a 3b 3c 3d 3e 3f 40 39 52 77 33 63 30 32 57 31 41 78 46 43 6d 56 67 47 37 6f 7d 4f 65 75 34 76 69 5b 5c 5d 5e 74 60 5f 6a 42 4c 7b 64 79 68 70 7a 50 49 6e 35 48 5a 4b 6b 44 55 54 4e 73 51 71 72 4a 7c 62 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 4d 4b 42 79 4f 6c 68 69 63 75 3a 3b 3c 3d 3e 3f 40 56 7a 6d 64 70 6a 62 5f 38 30 4e 55 6f 4c 7b 31 36 53 7d 77 51 59 6b 46 32 43 5b 5c 5d 5e 50 60 61 67 6e 49 33 5a 41 58 4a 54 39 45 78 35 52 44 65 48 76 66 57 47 74 72 73 37 71 7c 34 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 52 48 67 4b 6a 55 71 54 79 57 3a 3b 3c 3d 3e 3f 40 59 36 6e 4c 53 7b 44 30 63 49 70 46 35 37 6d 7a 75 69 4f 61 42 74 6c 77 6f 7d 5b 5c 5d 5e 31 60 56 72 66 51 65 41 6b 43 47 39 68 33 45 76 4a 58 34 50 5a 64 4d 62 78 73 38 32 4e 7c 5f 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00",
"00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 10 11 12 13 14 15 16 17 18 19 1a 1b 1c 1d 1e 1f 20 21 22 23 24 25 26 27 28 29 2a 2b 2c 2d 2e 2f 79 7d 31 68 36 4d 62 67 32 4b 3a 3b 3c 3d 3e 3f 40 6d 44 47 42 78 51 35 74 72 56 57 4f 65 6b 59 6c 37 45 69 38 6f 4e 7b 4a 48 33 5b 5c 5d 5e 52 60 64 58 53 71 63 49 73 76 43 6a 30 66 5a 70 5f 46 55 6e 54 4c 50 77 34 41 75 61 39 7c 7a 7e 7f 80 81 82 83 84 85 86 87 88 89 8a 8b 8c 8d 8e 8f 90 91 92 93 94 95 96 97 98 99 9a 9b 9c 9d 9e 9f a0 a1 a2 a3 a4 a5 a6 a7 a8 a9 aa ab ac ad ae af b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf c0 c1 c2 c3 c4 c5 c6 c7 c8 c9 ca cb cc cd ce cf d0 d1 d2 d3 d4 d5 d6 d7 d8 d9 da db dc dd de df e0 e1 e2 e3 e4 e5 e6 e7 e8 e9 ea eb ec ed ee ef f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 fa fb fc fd fe ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00"
]
for i in range(len(mappings)):
mappings[i] = [chr(int(j, 16)) for j in mappings[i].split(' ')]
current_mapping = 0
ascii_range = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ_abcdefghijklmnopqrstuvwxyz{}"
input_str = ""
for i in range(0, 30, 2):
chars = ascii_range[i:i+2]
for char in chars:
input_str += chr(mappings[current_mapping].index(char))
current_mapping += 1
print(input_str)
Since we know complexSort will always sort the compared string into its natural ascii ordering (same string, true passed which is mapped to false so no sort call) we can sort it ourselves and skip a step, from there we just chunk the string into 2-character pairs and reverse the mapping, resulting with the output of the 2nd half of our flag:
_str41ght_0f_r34d1ng_J4v4_d0cs
Success
From here we can combine the two halves to create the string th3_s3cr3t3_r3c1p3_1s_23_h0ur5_str41ght_0f_r34d1ng_J4v4_d0cs, which we can feed to the [REDACTED] option and…

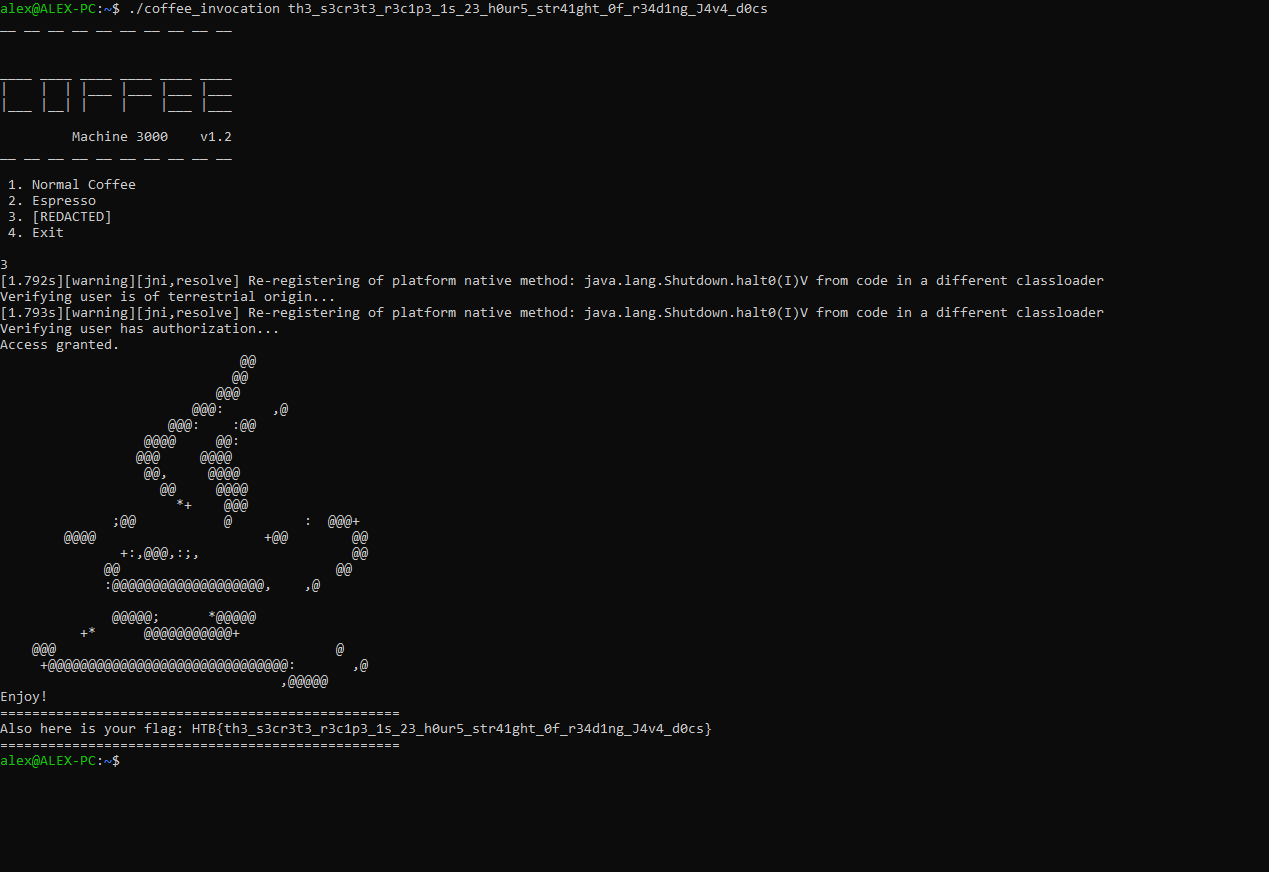

Our final flag is output - HTB{th3_s3cr3t3_r3c1p3_1s_23_h0ur5_str41ght_0f_r34d1ng_J4v4_d0cs} !
Conclusions
This was a super fun challenge to solve after the actual competition and time pressures that come along with it, I got to combine my developing reverse engineering skills with my existing Java knowledge, along with some learning about how JNI works. It can bend your brain a little thinking about all of the remappings, especially when true becomes false and vice-versa, but some simple scripting can help immensely.
